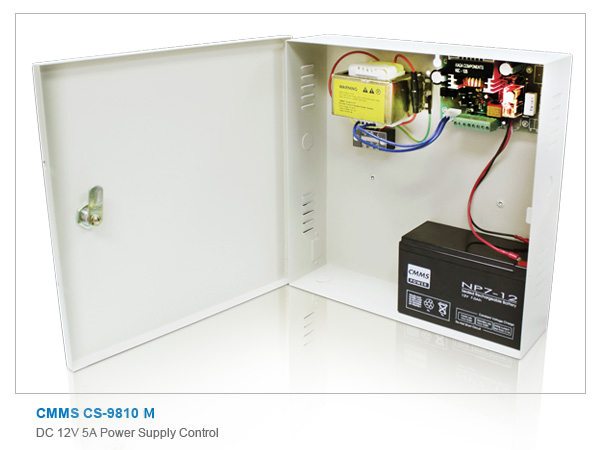

CMMS CS-9810 M


CMMS CS-9810 M

DC 12V 5A Power Supply Control

Zoom the picture


  • Professional design, specifically made for access control system installations

  • Utilizes quality electronic components for added safety and stability

  • Multiple outputs to suit various installation requirements

  • Capable of supplying power continuously for approximately 7 hours when used with CMMS NP7-12V/7AH Backup Battery (optional)


Model CMMS CS-9810 M
Input Voltage AC 220V
Input Frequency 50Hz
Output Voltage DC 12V (adjustable from 9V - 19V)
Output Current 5A
Output Contact access control, electric locks, push button contacts
Relay Time 0.2 - 25 seconds (adjustable
Option Accessory CMMS NP7-12 12V/7AH Backup Battery
Standard Design Steel case with spray painted surface
Safety Mechanism Built-in short circuit protection
Dimensions (W × H × D) 300x 205 x 90 (mm)
Net Weight 4.2kg


Weak current devices such as access control systems and electric locks.
