CMMS SR209

CMMS-SR209

CMMS SR209

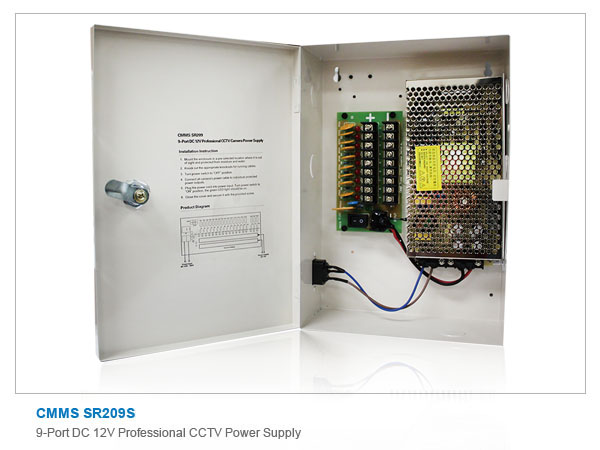

9-Port DC 12V Professional CCTV Power Supply

Zoom the picture

Features

  • Independent PTC fuse and LED indicator for each output port

  • Short Circuit Protection

    When short circuit condition occurs, individual PTC fuse will open the circuit. When the short circuit condition is cleared, PTC fuse will automatically back to close status.

  • High Voltage Protection

    When high voltage condition occurs, the surge protector will regulate the voltage to protect the connected device.

  • Over Current Protection

    When over current condition occurs,  the power supply will automatically switch to self-protection mode. When the over current condition is cleared, power supply will switch back to normal mode.

Specifications

Model CMMS SR209
Input Voltage AC 220V
Input Frequency 50Hz - 60Hz
Output Voltage DC 24V ± 5%
Output Port 9
Total Output Current 10A
Single Maximum Output Current 2A
adjustable output power 10.6 - 13.6V
Dimensions (W × H × D) 205 x 245 x 90 (mm)
Weight 2.2KG

Application

CCTV Camera, CCTV Surveillance Equipment.
