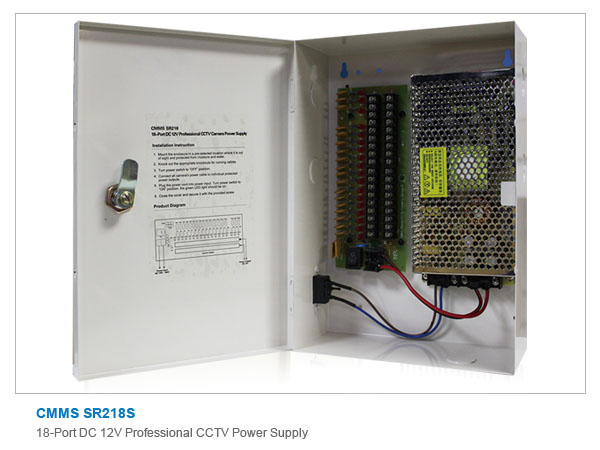

CMMS SR218S
Features
Independent PTC fuse and LED indicator for each output port
Short Circuit Protection
When short circuit condition occurs, individual PTC fuse will open the circuit. When the short circuit condition is cleared, PTC fuse will automatically back to close status.
High Voltage Protection
When high voltage condition occurs, the surge protector will regulate the voltage to protect the connected device.
Over Current Protection
When over current condition occurs, the power supply will automatically switch to self-protection mode. When the over current condition is cleared, power supply will switch back to normal mode.
Specifications
Model | CMMS SR218S |
---|---|
Input Voltage | AC 176V - 264V |
Input Frequency | 50Hz - 60Hz |
Output Voltage | DC 12V ± 5% |
Output Port | 18 |
Total Output Current | 15A |
Single Maximum Output Current | 1.1A |
Dimensions (W × H × D) | 300x 205 x 90 (mm) |
Weight | 2.3KG |
Application
CCTV Camera, CCTV Surveillance Equipment.
